Oxford University Press Text Capture Instructions

The Cases in Radiology series contains cases split into a page for the case history and a page for the diagnosis overleaf. The intention is for the reader to guess the diagnosis based on the case history before turning the page. To support this functionality in XML, particularly for the online product:

• Capture the case number from the history page as the chapter title. Capture the following page title (such as Case 50 Acute Myocardial Infarction) as a div2 division within a Diagnosis div1 division.
• In the online product, to display the diagnosis initially collapsed (folded) create a title, Diagnosis for the second page inside a div1 and add the attribute role="A". Prevent the Diagnosis title appearing in the printed product by adding attribute display="online" to the p element containing the title text.
• Capture the History section in a div2 division inside a dummy div1 division.
• Capture all other headings (Findings, etc) in div2 divisions inside the Diagnosis div1 division.

Example where the title "Acute Myocardial..." is shown on the next page

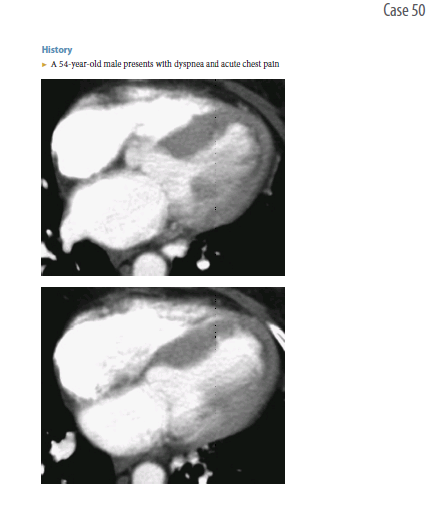

Case History (first page of case)

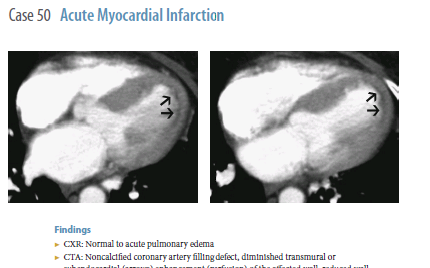

Diagnosis (next page)

XML

      <chapter role="case" id="med-9780199566990-chapter-50" doi="10.1093/med/9780199566990.003.0050">
        <titleGroup><title>
 <p>
                         <enumerator>Case 50</enumerator>
                     </p></title>
        </titleGroup>
        <textMatter><div1 role="prelim">
 <div2>
   <titleGroup>
     <title>
       <p>History</p>
     </title>
   </titleGroup>
   <!-- text and images on same page as history -->
 </div2></div1><div1 role="A">
 <titleGroup>
   <title>
     <p display="online"> Diagnosis</p>
   </title>
 </titleGroup>
 <div2>
   <titleGroup>
     <title>
       <p>Case 50: Acute Myocardial Infarction</p>
     </title>
   </titleGroup>
   <!-- images on the next page but before the start of the next div with a title if applicable-->
 </div2>
 <div2>
   <titleGroup>
     <title>
       <p>Findings</p>
     </title>
   </titleGroup>
   <!-- more text -->
 </div2>
 <!-- other existing headings and their text all contained within <div2> --></div1>
        </textMatter>
      </chapter>
