Oxford University Press Text Capture Instructions



Symbols (OHPDT)

Capture the meaning of symbols using role and title attributes and omit the symbols from the XML.

Wherever you see the symbols in the table below, start a new div2 and capture the attribute values shown in the table for the role and title attributes. Do not capture the image.

Symbol

div2 role

div2 title

media/614187_image17.png

potential uses

Potential uses

media/783953_image18.png

contraindications

Contraindications and cautions

media/880661_image19.png

how to use

How to use

media/707241_image20.png

adverse effects

Most common and most serious adverse effects

media/633111_image21.png

interactions

Major drug-drug interactions

media/920101_image22.png

monitoring

Monitoring

media/125488_image23.png

patient information

Patient information

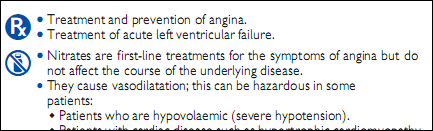

Example

media/967288_image24.png

XML


<div2 id="med-9780198530077-chapter-10-div2-20199" role="potential uses">
<titleGroup><title>
<p>Potential uses</p></title>
</titleGroup>
<p>
<list class="other">
<list1 id="med-9780198530077-chapter-10-list1-275" listType="unstructured">
<item1 id="med-9780198530077-chapter-10-item1-1200">
<p>
<enumerator>•</enumerator> Treatment and prevention of angina.</p>
</item1>
<item1 id="med-9780198530077-chapter-10-item1-1201">
<p>
<enumerator>•</enumerator> Treatment of acute left ventricular failure.</p>
</item1>
</list1></list>
</p>
</div2>
<div2 id="med-9780198530077-chapter-10-div2-20200" role="contraindications">
<titleGroup><title>
<p>Contraindications and cautions</p></title>
</titleGroup>
<p>
<list class="other">
<list1 id="med-9780198530077-chapter-10-list1-30139" listType="unstructured">
<item1 id="med-9780198530077-chapter-10-item1-1202">
<p>
<enumerator>•</enumerator> Nitrates are first-line treatments for the symptoms of
angina but do not affect the course of the underlying disease.</p>
</item1>
<item1 id="med-9780198530077-chapter-10-item1-1203">
<p>
<enumerator>•</enumerator> They cause vasodilatation; this can be hazardous in
somepatients:</p>
</item1>
</list1></list>
</p>
</div2>
