Oxford University Press Text Capture Instructions

Some Medical Textbooks have chapters with a section at the end called Additional Online Material.

The printed book simply contains a list of such materials; the XML however should include corresponding object (video, figure or text). The text that is displayed on the print version of this section should be used as a div2 heading in which to encompass the video/figure or text.

OUP provide an Excel spreadsheet with the video/image files to enable you to map the numbered items in the Additional Online Material section to the actual files on disk. This is used in the sysId of the graphic element for figures or the fileName attribute of the fileRef element for videos.

Example

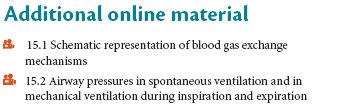

The XML below doesn't match the picture above, but demonstrates an additional online material section that comprises:

• 2 videos
• 1 figure
• 1 text only section comprising of a table
• 1 text only section containing of a couple of headings.

XML

      <miscMatterGroup>
        <miscMatter id="med-9780198566236-miscMatter-23"><textMatter>
 <div1 role="additional online material">
   <titleGroup>
     <title>
       <p>Additional online material</p>
     </title>
   </titleGroup>
   <div2>
     <titleGroup>
       <title>
         <p>
                                     <enumerator>59.1</enumerator> Chest and abdominal angio-MRI of an acute type
                      B (De Bakey type IIIb) aortic dissection</p>
       </title>
     </titleGroup>
     <p><?Insert-Media ID="med-9780199566990-miscMatter-23-mediaGroup-0136"?></p>
   </div2>
   <div2>
     <titleGroup>
       <title>
         <p>
                                     <enumerator>59.2</enumerator> CT scan of an acute type A (De Bakey type I)
                      aortic dissection</p>
       </title>
     </titleGroup>
     <p><?Insert-Media ID="med-9780199566990-miscMatter-23-mediaGroup-0137"?></p>
   </div2>
   <div2>
     <titleGroup>
       <title>
         <p>
                                     <enumerator>59.3</enumerator> Transoesophageal echocardiography of an acute
                      type A (De Bakey type I) aortic dissection</p>
       </title>
     </titleGroup>
     <p><?Insert-Figure ID="med-9780199566990-miscMatter-23-figureGroup-0120"?></p>
   </div2>
   <div2>
     <titleGroup>
       <title>
         <p>
                                     <enumerator>59.4</enumerator> Electrolytes: serum values and daily
                      requirements</p>
       </title>
     </titleGroup>
     <p><?Insert-Table ID=" med-9780199584314-miscMatter-23-tableGroup-999999999"?></p>
   </div2>
 </div1></textMatter>
        </miscMatter>
      </miscMatterGroup>
      <mediaGroup id="med-9780199566990-miscMatter-23-mediaGroup-0120">
        <media class="video">
 <fileRef fileName="media/med-9780199566990-video-01.avi" mediaRef="185958883000"/>
        </media>
      </mediaGroup>
      <!-- some text -->
      <mediaGroup id="med-9780199566990-miscMatter-23-mediaGroup-0136">
        <media class="video"><caption>
 <p>Schematic representation of blood gas exchange mechanisms.</p></caption>
 <fileRef fileName="media/med-9780199566990-video-02.avi" mediaRef="185958883000"/>
        </media>
      </mediaGroup>
      <mediaGroup id="med-9780199566990-miscMatter-23-mediaGroup-0137">
        <media class="video"><caption>
 <p>Airway pressures in spontaneous ventilation and in mechanical ventilation during
              inspiration and expiration.</p></caption>
 <fileRef fileName="med-9780199566990-video-03.avi" mediaRef="185958883000"/>
        </media>
      </mediaGroup>
