Cross-References with paragraph and section ids

For XML-first titles, where the Section IDs have been indicated on the title passport, use the paragraph and section id workflow for indexing and cross references within the text.

Only follow this topic if Section IDs have been requested via the title passport.

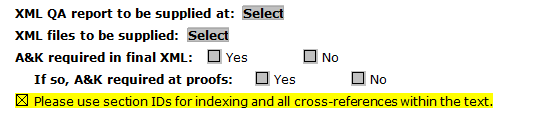

Example Title Passport

media/725918_image2.png

Add a milestone element as the first child element of paragraphs identified by paragraph ids (C1, C1.S1, C1.P1) in the manuscript. For ids at the chapter or division level, include this in the titleGroup/title/p. For ids at the paragraph level, include this as the first element in the paragraph.

                    //chapter/titleGroup/title/p

                    //*[name()[contains(., 'div')]]/titleGroup/title/p

//p

Give the milestone element a unique id attribute by following the instructions in the TCIs for id attribute capture here: IDs and DOIs. Capture the value of the unique section or paragraph id number in the num attribute. Capture the unit attribute with value para-id.

When the XML index is generated the xref element must contain the page number and the ref attribute must point to the corresponding para-id milestone id attribute.

Example XML:


      <chapter id="med-9780199547739-chapter-1" doi="10.1093/med/9780199547739.003.0001">
        <titleGroup><title>
 <p>
                     <milestone id="med-9780199547739-chapter-1-milestone-1" unit="para-id" num="C1"/>
                     <enumerator>Chapter 1</enumerator> Introduction</p></title>
        </titleGroup>
        <textMatter><div1 id="med-9780199547739-chapter-1-div1-346" role="prelim">
 <p>
                     <milestone id="med-9780199547739-chapter-1-milestone-2" unit="para-id" num="C1.P1"/>
              What is infectious disease epidemiology?</p>
 <p>
                     <milestone id="med-9780199547739-chapter-1-milestone-3" unit="para-id" num="C1.P2"/>
              How is infectious disease epidemiology different from non-infectious disease
              epidemiology?</p></div1><div1 id="med-9780199547739-chapter-1-div1-347">
 <titleGroup>
   <title>
     <p>
                             <milestone id="med-9780199547739-chapter-1-milestone-4" unit="para-id" num="C1.S1"/>Medical Ethics</p>
   </title>
 </titleGroup>
 <p>
                     <milestone id="med-9780199547739-chapter-1-milestone-5" unit="para-id" num="C1.P2"/>Epidemiology provides the tools to understand why and how infections spread.</p></div1>
        </textMatter>
      </chapter>

Index cross reference:


      <indexItem1 id="med-9780199547739-indexItem1-4">
         <iHeadword>epidemiology</iHeadword>
        <xrefGrp>
             <pageNum pageId="66">
                 <xref ref="med-9780199547739-chapter-1-milestone-4">66</xref>
             </pageNum>
         </xrefGrp>
      </indexItem1>
